Design and Implementation of lda.chat: An AI Agent for Automating and Creating Workspace Workflows		July 1, 2026	en-US	report	a4	10pt	true	2	Table of Contents	true	true	true	references.bib	true	Figure	Figure	Table	true	true	idiomatic	top=30mm bottom=30mm left=32mm right=32mm	Libertinus Serif	Libertinus Sans	Libertinus Mono	Libertinus Math	true	MidnightBlue	MidnightBlue	MidnightBlue	workflow agents source providers JSON-RPC MCP Python sources		engine mermaid theme neutral

List of Abbreviations

Abbreviation	Meaning
API	Application Programming Interface
AI	Artificial Intelligence
CLI	Command-Line Interface
JSON-RPC	JavaScript Object Notation Remote Procedure Call
LLM	Large Language Model
MCP	Model Context Protocol
RPC	Remote Procedure Call
USTH	University of Science and Technology of Hanoi

Abstract

Preparing reports, transforming documents, and collecting workspace information often involve procedures that must be repeated with new inputs. An AI assistant can help perform such work. Repeating it requires preserving the operations and their data connections as an executable procedure. This thesis develops the programmable workflow subsystem of lda.chat for defining, checking, running, and inspecting reusable workspace procedures.

A workflow describes the operations to perform, the data they exchange, and the decisions that select the next step. An artifact is an immutable saved version of that workflow. A deployment connects a saved version to the concrete services it will use. A run records one execution, including its inputs, status, result, and trace. These distinctions separate revising a procedure, configuring where it operates, and examining what happened.

The design addresses both authoring experience and execution behavior. Authors need to discover operations, connect their inputs and outputs, understand validation errors, and inspect results. The runtime needs corresponding rules for data contracts, control flow, state updates, and interruption. The thesis compares these concerns with other workflow systems and explains the prototype's choice to separate a node's data output from its routing outcome.

The implementation includes a workflow runtime, Python authoring objects, a workflow service, and adapters for trusted Python functions and external tools. The evaluation focuses on workflow construction and execution through the Python client. It uses a deterministic case study and identifies focused tests of validation, execution, and persistence. Agent-driven authoring and authoring usability remain to be evaluated as the interaction design develops.

Introduction

Preparing a weekly project report involves collecting notes, extracting actions and risks, checking the result, and producing a document that other people can use. A person can do this manually, write a script, or ask an AI assistant for help. When the procedure becomes recurring, the workspace also needs a way to preserve it, supply different inputs, and inspect unsuccessful attempts.

lda.chat turns such a procedure into a reusable workflow: a saved description of operations, their data connections, and their execution order. An author can revise this description, connect it to available services, and run it with new inputs. Each execution has a separate record of its progress and results. The procedure remains available after the conversation or programming session that created it has ended.

For the report task, the initial procedure is short:

Read the notes, extract a structured report, and render it as Markdown.

The operator supplies new notes each week using the saved steps. If the requirements change, the author revises the procedure and saves another version. If execution fails, the operator needs to identify the affected step and its inputs.

From a useful procedure to a usable system

The intended beneficiary is a workspace operator who needs repeatable work. Its author may be that person, a developer, or an external agent acting on their behalf. Once saved, the procedure can run with or without an LLM operation, according to the steps its author included.

A workflow system must help its author answer practical questions: which operations are available, what information they require, and how one operation's result becomes another's input. During operation, it must distinguish an invalid definition, a missing service, a failed execution, and a request for more input. The runtime is the part of the system that executes the workflow: it invokes steps, maintains working data, and determines where execution continues. These are interaction-design concerns as well as runtime concerns. An interface that draws a branch without explaining whether one path or both will execute leaves a consequential rule implicit.

The current authoring interface is Python-based. It presents workflow and run objects for discovering operations, revising a graph, and inspecting execution. An external agent can use that interface through a Python execution environment. The interface and runtime are under development, with the implemented behavior and its supporting evidence examined in this thesis.

Engineering question and contribution

This thesis examines how authors can define a reusable procedure while the system manages its individual executions. Authors specify data connections and decisions about what happens next. The system must preserve those rules when steps repeat, when one workflow calls another, and when execution pauses for input. Separating these responsibilities allows a saved procedure to be executed without retaining the conversation or programming session that produced it.

The prototype implements three design choices as one lifecycle:

1. A graph with declared data structures represents operations, working data, and routing decisions so they can be validated and inspected.
2. Separate saved versions, service configuration, and execution records make editing, configuration, and operation distinct activities.
3. Programmable authoring, validation diagnostics, and run inspection expose those distinctions to human and agent clients.

The work integrates established workflow techniques into a service for reusable procedures. Its design is examined from both sides: what an author must understand and do, and what the runtime guarantees when the procedure executes. The comparison with related systems examines concrete authoring and execution mechanisms.

Scope of the implementation

The implemented runtime supports conditional routes, iteration, calls to saved workflows, and explicit interruption/resume. A run-wide limit bounds the number of node executions it admits. General parallel fork/gather remains proposed. The evaluation covers controlled execution and lifecycle tests, with usability and production operation identified as further evaluation work. A companion assistant backend can execute code in persistent Python shells. Its workflow authoring integration and developing chat interface are discussed in Future Work, outside the evaluated workflow case study.

Report outline

Chapter 2 derives interaction and execution requirements from the workspace task. Chapter 3 compares ways to author and operate that task in related systems. Chapter 4 explains the prototype's concepts through an example. Chapters 5 and 6 describe architecture and implementation; Chapter 7 presents the reproducible case study. Chapter 8 evaluates the available evidence. The remaining chapters discuss limitations, future work, and conclusions.

Problem Statement And Requirements

A procedure that works once is not necessarily ready for repeated operation. For the report example, a renamed field may invalidate extraction, a different workspace may use another notes service, or the input may omit information needed by the final document. The author needs feedback that distinguishes these situations, while the runtime needs rules for handling them.

LLM tool-use approaches illustrate dynamic selection of actions [@react-2022; @toolformer-2023]. Such approaches can incorporate schemas and persistence. This thesis examines which responsibilities belong in the saved procedure and which remain with its authoring environment.

The requirements are organized into two groups. R1–R5 describe the authoring and operation experience the system should support. X1–X5 define the execution rules needed to support that experience. Their identifiers link the design to the evidence assessment in [@tbl:requirements-evidence].

Authoring and operation requirements

The authoring requirements cover discovery, data movement, revision, version selection, and execution inspection:

1. R1 — Discover before connecting. Show available operations and the inputs, outputs, and services they require. The author should not need to inspect server implementation code to learn how an operation can be used.
2. R2 — Make data movement understandable. Explain how a document path becomes text, how text becomes structured fields, and which fields reach the result. Distinguish a data connection from a decision about what executes next.
3. R3 — Support revision and useful feedback. An author should be able to revise an unfinished procedure and locate errors in the relevant step or data mapping. Diagnostics should locate the rejected part and explain the violated constraint.
4. R4 — Separate editing from running. Make clear which version an execution uses. Editing the next version should not silently change an earlier one.
5. R5 — Explain execution state. Distinguish completed, failed, and interrupted runs, expose relevant intermediate evidence, and identify the input required to resume an interruption.

Agent-assisted authoring places particular demands on this interaction. An agent must discover the available operations, interpret a rejected definition, and determine which changes are permitted without relying on implementation files. This motivates three complementary forms of support: descriptions of operations and their contracts, diagnostics that locate errors, and instructions for the authoring and execution lifecycle. Structured responses, stable identities, and inspection results with explicit size limits make that information available to programmatic clients. Human authors and other software clients use the same information to construct and operate workflows.

A saved definition follows the same routing and data rules whether it was written by a developer or assembled by an agent. The evaluation therefore examines ease of use and compliance with execution rules as separate questions.

Execution requirements behind the interaction

Those interactions require corresponding runtime contracts (X1–X5):

1. X1 — Preserve definitions and executions independently. Save an identifiable procedure version and keep separate records for its invocations.
2. X2 — Validate known constraints before work starts. Check graph structure, declared data contracts, mappings, and required service connections.
3. X3 — Specify routing and state changes. Define what selects the successor, where outputs are written, and how repeated writes affect the workflow's working data, referred to here as workflow state.
4. X4 — Separate environment choices from procedure logic. Resolve logical service requirements to concrete configured services and report mismatches.
5. X5 — Bound and inspect execution. Limit admitted node executions, retain status and trace information, and support resume at defined interruption boundaries.

Together, these requirements motivate separate records for saved procedures, environment selection, and individual executions.

Costs and boundaries

Declaring data structures, mappings, and saved versions imposes authoring work. A script can be preferable for a short-lived task, especially when its author already understands the libraries involved. The platform targets cases where reuse and inspection justify that setup. Determining when those benefits outweigh the setup cost requires further evaluation.

A workflow interface must also avoid promising more than its runtime supports. Successful validation does not guarantee a remote service will succeed, and a saved interruption does not make arbitrary external effects reversible.

Positioning And Related Systems

The report task provides a common example for comparing authoring and execution. The comparison asks how an author connects operations and data, how the runtime handles decisions and repeated work, and how the author tests and inspects a run. These questions apply to graphical editors and Python interfaces alike.

The accounts below use documented mechanisms consulted in September 2026. They describe selected interaction and execution mechanisms. Comparative usability would require participants performing matched tasks.

Starting with code or direct tool calls

A developer can express the report procedure as function calls and use the language's conditionals and loops. An agent can instead select successive tool calls from the information available at each turn. Both approaches can be combined with schemas, tests, logs, and persistence.

Scripts, including generated scripts, are a substantive alternative rather than merely a preliminary form of workflow automation. Code puts the procedure close to its implementation and makes ordinary debugging tools available. It also leaves decisions about configuration, saved versions, and run records to the program or its surrounding infrastructure. A workflow platform makes some of those decisions part of its public contract, at the cost of introducing another model for the author to learn.

The prototype still uses Python for authoring. The distinction is whether that code performs the entire procedure directly or constructs a saved workflow for the service to execute. Neither representation is automatically better for a one-off task.

For this comparison, state means working data retained during execution; a reducer defines how a new write changes a state field. The prototype's outcome is a routing label returned separately from a step's data output. Chapter 4 develops these concepts through the report example.

The comparison asks the same questions of each system: what a step produces, how subsequent work is selected, how data combines, and how an author sees those rules. Suspension is considered separately from ordinary branching.

n8n: connecting and inspecting data

n8n passes arrays of data items between connected nodes. Items contain JSON data and may also contain binary data. Authors map fields from incoming items into node parameters; dragging a field into a parameter creates an expression. Thus, a connection participates in data flow as well as execution order [@n8n-data-2026].

For an author combining report records, n8n's Merge node exposes a concrete choice: append the incoming collections, match records by fields or position, or produce combinations. The node's configuration and worked examples make these operations distinguishable. Append waits for connected inputs and emits their items in input order [@n8n-merge-2026].

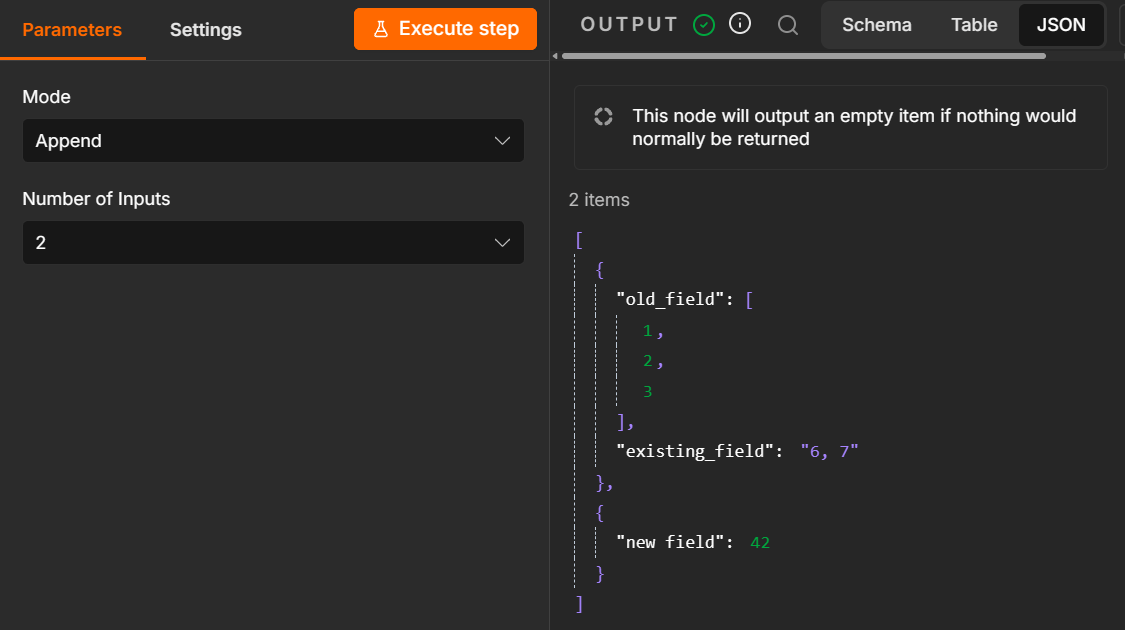

[@fig:n8n-merge-append] shows the Append setting and the resulting two output records. The fields remain in separate records; selecting Append does not combine them into one record.

{#fig:n8n-merge-append width=100%}

Selecting a merge mode changes which records appear in the output. For the report task, joining actions by owner is different from appending two action lists.

In this thesis, a data binding is a declared mapping from a value's source location to its destination. The prototype represents data movement through these bindings. Its reducers define how writes update state fields. Joining records and waiting for branch completion are separate operations. Branching does not necessarily imply simultaneous execution. For workflows created from n8n 1.0, the documented default completes one branch before starting another, with ordering affected by canvas position and workflow settings [@n8n-order-2026]. The author therefore needs both item-level data inspection and an account of branch execution, not only a connected diagram.

Zapier: configuring a decision

Zapier exposes the output fields of earlier steps for mapping into later steps. Test records supply the values shown during configuration; live runs use their own data. This makes the mapping an explicit reference to a previous step, rather than an update to an author-declared shared state field [@zapier-mapping-2026].

An author using Zapier Paths selects fields, conditions, and values, then tests the rules against sample data. Applied to the report task, those rules could distinguish complete records from records needing attention. Multiple paths can qualify, so exclusivity must follow from the rules rather than the branching appearance alone [@zapier-paths-2026].

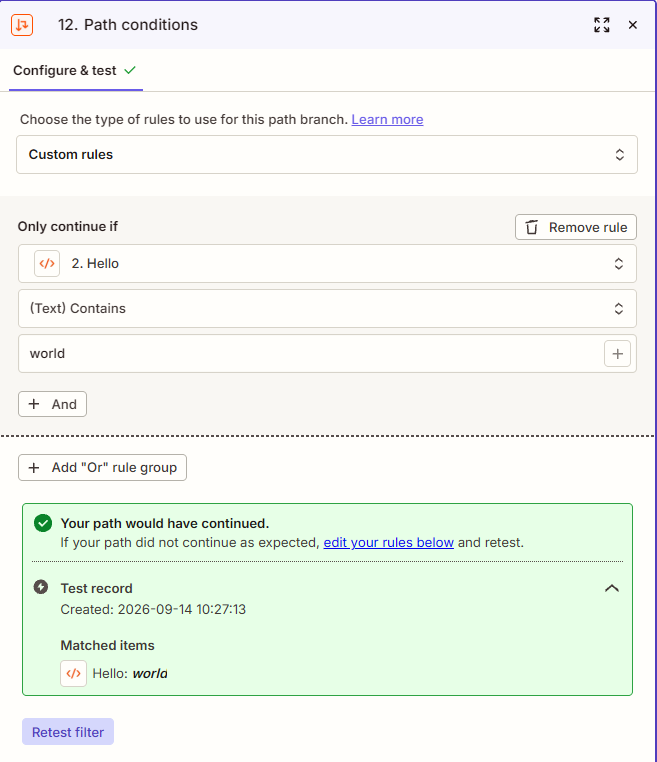

[@fig:zapier-path-condition] shows a rule testing whether the selected Hello field contains world. The test record matches, and the interface reports that this path would have continued. This preview lets the author check a rule against a concrete value before running the workflow.

{#fig:zapier-path-condition width=75%}

The same documentation describes sequential execution of qualifying paths. The rules can permit several branches to execute in one run. An exclusive choice requires conditions that cannot qualify together. Paths does not provide a shared action after all branches; common steps can be duplicated or placed in a Sub-Zap. These constraints affect how the author organizes a common report-rendering step [@zapier-paths-2026].

The interface therefore needs to communicate both the condition being tested and the consequence of a match. In lda.chat, an ordinary outcome selects one successor, whereas several Zapier Paths may qualify.

\begin{minipage}{\linewidth}

LangGraph: describing decisions in Python

LangGraph's Graph API lets an author define state, add node functions and routing, compile the graph, and invoke it. For the report task, a developer can represent extracted fields in state and write a routing function that selects what happens next [@langgraph-graph-api-2026].

In this small example, clean returns an update to the text field. The separate choose function reads that updated state and selects either the rendering step or the end of the graph:

from typing import TypedDict
from langgraph.graph import START, END, StateGraph

class ReportState(TypedDict):
    text: str
    report: str

def clean(state: ReportState):
    return {"text": state["text"].strip()}

def choose(state: ReportState):
    return "render" if state["text"] else END

def render(state: ReportState):
    return {"report": "# Report\n\n" + state["text"]}

builder = StateGraph(ReportState)
builder.add_node("clean", clean)
builder.add_node("render", render)
builder.add_edge(START, "clean")
builder.add_conditional_edges("clean", choose, ["render", END])
builder.add_edge("render", END)
graph = builder.compile()

\end{minipage}

Calling graph.invoke({"text": " Notes ", "report": ""}) cleans the text, then produces a report. Whitespace-only input ends after clean. The state update and the routing decision are expressed in separate functions here; LangGraph also offers Command to return both from a node [@langgraph-graph-api-2026].

This authoring style exposes more behavior as code. Nodes produce state updates, reducers determine how updates combine, and conditional routes select subsequent execution. The documented model supports graph loops and super-step execution (parallel execution with a synchronization barrier); its checkpoint facilities are described separately [@langgraph-graph-api-2026; @langgraph-persistence-2026].

The prototype shares the use of typed state and reducers, but represents ordinary routing as a mapping from a declared outcome to a successor. This keeps executable predicates out of ordinary edges. The cost is that some decisions need a dedicated condition step or an additional declared outcome. The relevant comparison is where authors express and inspect decisions, not whether Python or a canvas is inherently the better interface.

Saved definitions, configuration, and execution records

Lifecycle separation is not unique to the prototype. n8n distinguishes saved edits from the published version used for production execution, and separates workflow history from execution history. Its execution view supports status filtering and inspection of previous attempts [@n8n-publish-2026; @n8n-executions-2026].

Zapier allows draft editing while a published Zap remains active. Publishing creates a version, and run details identify the version used and the data received and sent by individual steps. Connected application accounts are managed separately through app connections [@zapier-versions-2026; @zapier-history-2026; @zapier-connections-2026].

For LangGraph's library API, the graph is defined and compiled in application code. Checkpointers store execution snapshots organized by thread identity; the application can retrieve current state and state history. Application configuration and dependency provision remain part of the surrounding code. This library-level comparison does not cover hosted deployment products [@langgraph-graph-api-2026; @langgraph-persistence-2026].

The prototype groups available operations into configured sources, such as a collection of Python functions or an external tool service. It exposes saved definitions, source selection, and run inspection as artifact, deployment, and run objects in its Python client. Its deployment mapping selects a configured provider that must satisfy the saved source requirements. An app connection or credential is therefore only a partial analogy: the source also supplies operations and their contracts.

The system combines these lifecycle responsibilities with its typed graph and Python client. Each system must distinguish an edit to future work from the recorded definition and data of a past execution.

Implications for this design

[@tbl:positioning-summary] compares the documented mechanisms with the prototype's ordinary execution model. Its rows describe selected mechanisms, not every extension available in each product. The sources for n8n, Zapier, and LangGraph are discussed in the preceding subsections.

System	Data	Control selection	Combination
n8n	Item arrays	Branch connections	Merge modes
Zapier	Prior-step fields	Matching Paths	Explicit later actions
LangGraph	State updates	Edges and routers	Field reducers
Prototype	Output-to-state mappings	One outcome edge	Field reducers

: Data and control mechanisms compared. {#tbl:positioning-summary}

For the report task, these models put different work on the author. n8n requires attention to which items reach each node; Zapier requires mappings from earlier steps and rules for qualifying paths; LangGraph requires state and routing code. The prototype instead requires explicit output-to-state mappings and declared routing outcomes. These differences concern where the procedure's meaning is expressed, not just whether its editor is visual.

Pausing also has a separate contract. n8n's Wait node can resume on a time, webhook, or form condition [@n8n-wait-2026]. LangGraph's dynamic interrupt uses a checkpoint and thread identity; resuming restarts the interrupted node, so code preceding the interrupt executes again [@langgraph-interrupts-2026]. The prototype uses an explicit interruption boundary and a declared resume payload. A failed operation is not automatically such a pause: for example, Zapier documents that an errored step produces no output fields for subsequent mappings [@zapier-mapping-2026]. These observations do not establish equivalent retry or side-effect guarantees across the systems.

The design prioritizes Python authoring, explicit mappings, and saved execution records. An external agent can use the same client operations. Evaluating these interfaces requires observing how authors discover operations, repair definitions, and interpret results.

A configured Model Context Protocol (MCP) source supplies operations and readable content; the workflow runtime determines routing and state updates [@mcp-tools-2025; @mcp-lifecycle-2025].

Conceptual Model

The report procedure connects operations that read notes, extract report fields, and render a document. This chapter explains how the workflow represents those operations, where their data is stored, and how execution chooses the next step. It then follows the definition through saving, configuration, and execution.

Operations, data, and decisions

Suppose report preparation asks for missing information before rendering. [@fig:report-branch] shows the two possible routes through that decision.

%%{init: {"flowchart": {"rankSpacing": 20, "nodeSpacing": 20}}}%%
flowchart LR
  Read["Read<br/>notes"] -->|ok| Extract["Extract<br/>report"]
  Extract -->|ok| Check{Complete?}
  Check -->|ready| Render["Render<br/>report"]
  Check -->|needs_information| Ask["Request information<br/>(interrupt)"]
  Ask -->|submitted| Render
  Render -->|ok| Finish([End])

Each operation or control step occupies a node in the workflow. An operation node performs work, such as parsing notes into report fields. On completion, it returns output data and an outcome, a label used to choose what executes next. An edge connects that node and outcome to a successor. The runtime follows the edge whose label matches the returned outcome.

In [@fig:report-branch], successful extraction returns ok, which leads to the completeness check. That check selects ready or needs_information. The first leads directly to rendering, and the second leads to a request for input. Each decision selects one route. An exception while reading the notes instead fails execution and is recorded as an error.

The edge labels explain execution order. The author separately declares which data each node receives and which results it stores. Extraction stores report fields, the request can supply missing fields on resume, and rendering reads the resulting report. The following section describes those data connections.

Schemas declare the shapes of accepted inputs and produced results. They help the author see which fields an operation requires and allow the validator to detect incompatible mappings. The factual accuracy of extracted information and the availability of a remote service require separate checks.

A node output is the data returned by one step. The workflow output is the public data selected when the procedure completes. A run records that workflow output alongside status, diagnostics, execution identity, and trace information.

Workflow state and data bindings

State is the workflow's working data. In the report procedure, it contains the notes, extracted report, and rendered Markdown. Each run starts with its own working data and updates it as its nodes execute.

On a node's input and output, data bindings map values between named locations. An input binding supplies an argument from workflow input, state, or execution context, runtime information such as the current iteration item. An output binding selects a returned value to write into state. For example, extraction reads state.notes into its text argument, then writes its returned report to state.report.

[@fig:report-state] shows the linear report procedure and its data access. Solid arrows labeled ok are execution edges. Dashed arrows are data bindings, labeled with the fields they read or write. The shared State block makes the stored intermediate results visible alongside the operations that use them.

flowchart TB
  Input(["Workflow input: text"])
  subgraph Steps["Operations in execution order"]
    Read["Read notes"] -->|ok| Extract["Extract report"]
    Extract -->|ok| Render["Render Markdown"]
  end
  State["State<br/>notes · report · markdown"]
  Output(["Workflow output: report + markdown"])
  Input -.->|text argument| Read
  Read -.->|write notes| State
  State -.->|read notes as text| Extract
  Extract -.->|write report| State
  State -.->|read report| Render
  Render -.->|write markdown| State
  State -.->|select public result| Output

A reducer specifies how a write changes a state field. A replace reducer stores the new report in place of the previous value. An append reducer can instead accumulate reports from several documents in a list. These choices determine the effect of a write when a node executes more than once.

The workflow's final output bindings select the public result from the completed working data. Here they expose the report and Markdown, leaving the intermediate notes in state. A node with no output bindings stores none of its returned fields in workflow state.

Saving, configuring, and running the procedure

While authoring, an editable workflow is the mutable definition being revised. Saving creates an artifact: an immutable workflow version containing its graph and declared requirements.

A deployment selects a saved version and connects its logical service requirements to concrete configured services. For example, the same report procedure could use a test notes source in one deployment and a production notes source in another, provided both satisfy its required contracts. Changing the bindings is different from changing how the report is assembled.

A run records one execution of a deployment. Last week's successful report and this week's interrupted attempt are different runs, even if both use the same artifact and deployment. Inspecting a run should identify the version, inputs, status, and available execution evidence without changing the saved procedure.

[@fig:lifecycle-records] relates the saved version, its deployments, and their runs. The separate records preserve the distinction between changing a procedure and examining an execution of it.

classDiagram
  direction LR
  class EditableWorkflow {
    mutable graph
  }
  class ArtifactVersion {
    artifact_id
    version
    saved definition
  }
  class Deployment {
    deployment_id
    source bindings
  }
  class Run {
    run_id
    input and result
    status and trace
  }
  EditableWorkflow ..> ArtifactVersion : saves
  ArtifactVersion "1" <-- "0..*" Deployment : selects
  Deployment "1" <-- "0..*" Run : started from

Available operations and deployment binding

A capability describes functionality available from a source. The report example uses operation capabilities, such as extraction and rendering. A source catalog can also describe a resource, such as a readable text document. Reading that resource is an operation that produces data for the workflow.

A source groups capabilities under a configured identity. The extraction operation might come from trusted Python code, while another operation or document is supplied by an external service.

A deployment binding connects a logical source requirement in the workflow to a concrete source in the environment. Validation checks whether that source exists and matches the saved requirements. Source drift means those requirements no longer match the currently available capabilities, for example after an input schema changes.

Built-in sources have fixed platform identities and do not require those deployment bindings. Configured sources remain explicit operator choices. Portability is limited to environments with compatible code, credentials, and services.

Inspecting failure and resuming an interruption

A validation diagnostic concerns the definition or its dependencies before execution. A failed run records an operational problem encountered during execution. An interrupted run records an explicit request for input, together with the state needed to continue. The interface should distinguish these situations because they call for different actions.

In the report example, needs_information routes to a request step. The run then saves its position and waits for the requested data. Resuming validates the supplied response, applies the request step's declared data bindings, and follows its continuation to rendering.

A trace records execution evidence associated with the run. It identifies executed nodes and their outcomes, helping the operator locate a failed step or follow a decision through the graph. The implementation chapters explain how the runtime records this information.

Working glossary

[@tbl:working-glossary] summarizes the core terms through the report example.

Term	Meaning in the report example
Capability	An available operation or resource, such as a text document
Node	One use of an operation or control step in the procedure
Output	Data produced by a step
Outcome	A declared label selecting the next step
State	Working data retained during execution
Artifact	An immutable saved version of the procedure
Deployment	A saved version connected to concrete services
Run	One execution with its own status and evidence
Source	A configured collection of available operations
Data binding	A mapping into node input, workflow state, or public output
Deployment binding	A mapping from a required source to a configured source

: Working glossary for the thesis terminology. {#tbl:working-glossary}

The architecture chapter follows these concepts into the service and runtime.

System Architecture

The weekly-report example needs more than a graph executor. An author must discover the available operations, connect them, check the resulting workflow, and choose which saved version to run. An operator must then distinguish a bad definition from an unavailable service or an interrupted execution. The architecture separates these responsibilities without requiring each caller to implement the workflow lifecycle.

Three boundaries organize the system: authoring versus server operations, saved definitions versus individual executions, and workflow execution versus provider-specific calls. These boundaries are visible in the user-facing objects as well as in the implementation.

From authoring to server operations

The Python client is the main programmatic authoring interface. Its App object represents a connection to the workflow service. An author can inspect a capability, use the returned object in an editable workflow, validate that workflow, and save it. The client reconstructs server responses as Python objects with methods for further editing and inspection.

Local editing does not require a server request for each graph change. Discovery and persistence do: the service owns the available capability inventory and stored records. Validation therefore has both a local part, which checks the authored structure, and a server part, which checks it against the service's contracts.

[@fig:architecture-spine] shows this separation. The Python client and CLI provide independent entry points to the same service.

flowchart TB
  subgraph Authoring["Authoring and clients"]
    Python["Python App and editable workflow"]
    Client["Client port"]
    CLI["Command-line interface"]
    Python --> Client
  end
  subgraph Service["Server-composed services"]
    API["Workflow API"]
    Stores["Artifacts, deployments and run records"]
    Inventory["Available operation contracts"]
  end
  subgraph Transport["Transport boundary"]
    RPC["HTTP JSON-RPC adapter"]
  end
  subgraph Execution["Workflow execution"]
    Core["Workflow execution core"]
  end
  subgraph Integrations["Provider integrations"]
    Providers["Configured source providers"]
    Handlers["Execution handlers"]
  end
  CLI --> RPC
  Client --> RPC
  RPC --> API
  API --> Stores
  API --> Core
  Inventory --> API
  Providers --> Inventory
  Core --> Handlers
  Providers --> Handlers

The JSON-RPC adapter translates network requests into API calls and serializes their responses. The API coordinates validation, storage, and execution. The runtime handles graph behavior, including iteration returns and state updates, for all clients of that API.

An agent can author or operate a workflow through these interfaces. During a run, the runtime follows the saved graph. Agent participation within that execution requires an authored operation that invokes the agent.

Keeping a definition separate from its use

The client owns the editable graph. The service owns saved artifact, deployment, and run records. The API coordinates validation and persistence through their respective stores. Execution reads a selected definition and its resolved environment rather than the client's mutable editor contents.

For the report workflow, this boundary prevents an unfinished edit to the extraction step from becoming the definition of an already-created run. Inspection retrieves the definition identity and execution evidence recorded for that particular run.

The client exposes this progression through workflow artifact, deployment, and run objects. A run object contains a snapshot of the stored execution. Refreshing it requests a new snapshot. This makes network activity explicit, although applications must decide when to refresh and how to present progress.

A local/static server can also start deployment runs on a schedule. The optional scheduler supports one-time and recurring starts and records each scheduled occurrence for inspection. The Python client's App.create_schedule() registers a schedule for an existing deployment; App.schedule() retrieves its configuration, and App.schedule_occurrences() retrieves its history. The server must have scheduling enabled to start runs without a connected client. The Limitations chapter discusses scheduling's storage and concurrency constraints.

The draft API and CLI also support persisted editing workspaces, which retain unfinished definitions between requests. Python authoring can save directly from its editable object. Both routes produce a saved definition for deployment and execution.

Executing the graph

The execution core is the runtime that runs the saved graph. It holds the workflow input, working state, and the active node for each in-flight item or call. To execute an ordinary operation node, it resolves the node's input bindings, calls the selected operation, checks its result, applies output bindings, and follows the edge selected by the outcome. Repeating that cycle advances the run until it completes, fails, or pauses for input.

Some nodes control execution directly. A condition chooses a route, a foreach executes a body for each item, and an interrupt requests additional input. A subgraph node calls another saved workflow and uses its result when that call completes. The called workflow is referred to as the child workflow. Its input and state belong to that invocation, just as a function call has its own arguments and local working data.

Within a workflow, input bindings supply a step's arguments. Output bindings select returned values to write into workflow state. Reducers determine how those writes combine with existing values. The returned outcome selects the next edge. Rendering therefore requires both a route that reaches the renderer and an input binding that supplies the report it consumes.

[@fig:node-execution-cycle] follows one operation node through this cycle. The later iteration examples show how the runtime manages additional execution positions while a controller or child call is active.

flowchart TB
  Validation["Input validation"] --> Call["Invoke operation"]
  Call --> Result["Checked result"]
  subgraph Data["DATA: what becomes visible"]
    Output["Output payload"] --> Bind["Output bindings"]
    Bind --> Reduce["Reducers update state"]
  end
  subgraph Control["CONTROL: where execution goes"]
    Outcome["Declared outcome"] --> Route["Select matching edge"]
    Route --> Next["Next node"]
  end
  Result --> Output
  Result --> Outcome
  Reduce -.->|state available to next step| Next

A declared outcome such as needs_information is a workflow decision. A handler exception or exhausted node-execution allowance is an execution failure. A workflow can complete with an outcome such as needs_information without failing the run. Where iteration supports collecting item errors, that policy must be explicit; errors do not automatically become ordinary outcome edges.

The runtime performs the illustrated operations in sequence: it applies the result's writes before advancing along the selected route.

The trace makes the sequence inspectable, but a fixed graph does not imply identical external results. Language-model calls, remote services, and concurrent completion order can vary between runs. The runtime's defined routing and state-update rules should not be confused with reproducibility of every operation it invokes.

Iteration and child workflow boundaries

Suppose the report now covers two documents, A.md and B.md. The workflow must render a report for each, then assemble the two reports. For this first example, foreach is configured to process one document at a time. An output binding appends each rendered report to a reports state field, which the assembly step reads.

[@fig:foreach-graph] shows the authored graph. The loop edge enters the item body. Its return edge (a back-edge), render.ok -> each, ends that item's work. The done edge leads to the continuation after the collection is processed.

%%{init: {"flowchart": {"curve": "stepAfter"}}}%%
flowchart LR
  Prepare["Prepare documents"] -->|ok| Each["each: Foreach"]
  Each -->|loop| Render["render: Render item"]
  Render -->|ok: item return| Each
  Each -->|done| Assemble["Assemble reports"]
  Assemble -->|ok| Finish(["End workflow"])

In serial mode, A's return advances the foreach to B. B's return completes the collection and permits the done transition to assembly. Returning to the active foreach controller therefore finishes one item. Entering that controller from Prepare documents starts an invocation over the collection.

[@fig:foreach-region] follows one invocation from start to finish. Read downward for time. Solid arrows request work or apply a data binding; dashed arrows report completion. Here line style distinguishes requests from completion; in [@fig:report-state], it distinguishes execution from data bindings. The labels identify the data and routes.

sequenceDiagram
  participant Each as Foreach
  participant Body as Render item
  participant State as reports state
  participant Assemble as Assemble
  Note over Each,State: Start once: documents = [A.md, B.md], reports = []
  Each->>Body: loop: process A.md
  Body->>State: Output binding: append reportA
  Body-->>Each: ok: A is finished
  Each->>Body: loop: process B.md
  Body->>State: Output binding: append reportB
  Body-->>Each: ok: B is finished
  Note over Each: Both items finished
  Each->>Assemble: done: continue after the loop
  Assemble->>State: Input binding: read reports
  State-->>Assemble: [reportA, reportB]

The same authored render node executes twice. The runtime distinguishes those executions so that finishing A advances to B, while finishing B permits assembly. Each item returns to the foreach invocation that started it.

The return edge in [@fig:foreach-graph] records the item's return. Its output binding appends the report before that return. A node in the body belongs to that loop's control region. The validator rejects using the same node both inside and outside the body, or returning past the immediate enclosing loop. Ordinary cycles within one region remain valid, subject to the run-wide node-execution limit described in the implementation chapter.

Calling a child workflow for one document

Now replace the rendering work with a call to a saved child workflow that summarizes one document. Consider only the item for A.md. The parent may know the whole collection, but the child receives only the input explicitly mapped into its call: {"document": "A.md"}.

The child has its own input, working state, and execution context. Access to the parent's current item or reports field requires an input binding that supplies the needed value.

[@fig:scope-boundaries] shows the call and its return. The item waits while the child runs. The child's END returns its result to the calling node. The parent item then continues to its own return edge.

sequenceDiagram
  participant Item as Parent item A
  participant Child as Child workflow
  participant Result as A's pending report writes
  participant Each as Foreach
  Item->>Child: Input binding: document = A.md
  activate Child
  Note over Item: Wait for child
  Note over Child: Own input,<br/>state and context
  Child->>Child: Produce summaryA
  Child-->>Item: END: return summaryA
  deactivate Child
  Item->>Result: Output binding: append summaryA to reports
  Item-->>Each: ok: item A is finished
  Note over Each: Continue according<br/>to foreach mode

Input and output bindings cross the child workflow boundary explicitly. The two completion points are separate: child END returns to the calling node, and the calling node's route back to foreach finishes the item.

When items run concurrently

In concurrent mode, A and B may be in progress together. A returning from its child does not permit assembly while B is still running. The foreach waits for its required item completions before following done.

Concurrent items retain separate pending writes until their results combine. In [@fig:scope-boundaries], “A's pending report writes” represents these pending writes. In serial mode, the output binding updates enclosing state so the next item can read it.

For the successful two-item concurrent case, the foreach combines A's and B's writes using the declared reducers, then assembly reads the combined state. An append reducer and a replace reducer have different effects; neither the arrows nor the fact that both items completed chooses a merge policy. The serial ordering in [@fig:foreach-region] is not a promise about concurrent completion order.

If a child or item reaches an explicit interrupt, the run preserves which document was active and where it was waiting. Resume applies the response to that saved position and continues the same item.

Connecting external operations

Providers adapt external functionality to contracts the workflow system can inspect and invoke. Discovery supplies schemas and declared outcomes; execution supplies a handler for the selected binding. These are separate responsibilities because discovering an operation does not mean its service is currently reachable or authorized.

The server composes providers, stores, and the API. MCP-backed operations may need sessions, authentication, and remote catalog handling. Python-backed operations use configured, trusted imports. These concerns remain outside the graph scheduler. An experimental OpenAPI provider explores another source family without making it the system's product identity or implying that all API descriptions are interchangeable.

This boundary reduces provider-specific logic in workflows, but cannot erase provider differences. A schema describes a call's shape; it does not guarantee availability, cost, side-effect safety, or semantic equivalence to another operation with the same fields.

Implementation

Running the report procedure involves two kinds of work. The author first uses the Python client to construct, validate, and save a graph. The service then executes that saved graph with supplied input and records the result. This chapter follows those operations into the implementation, including the additional bookkeeping needed when steps repeat, call child workflows, or pause for input.

Following a Python authoring request

The client package, wf_client, exposes the App connection object introduced in the architecture chapter. Its App.from_http_jsonrpc(...) constructor records the service address. A later capability lookup contacts that service, checks the returned identity and contract, and constructs a Python capability object for the author to inspect or add to a workflow.

The editable workflow object reuses the graph-building methods of WorkflowBuilder, the authoring layer's builder. It adds validation through the service and saving. Validation first checks the graph locally. If a binding references an undeclared state field, the client returns that error immediately and records that server validation was not run. Otherwise, it submits the graph for the server to check against its available operations.

Saving validates first, submits the plan, checks the save response, and re-inspects the exact artifact version. The resulting artifact object is therefore reconstructed from the stored definition. Identity checks reject responses identifying a different artifact or deployment.

The Python client's Run.refresh() method retrieves a stored run by its identifier through the service's inspect_run operation. It verifies the run and deployment identities and returns a new run snapshot. Run.resume() submits the requested response for an interrupted run and also returns a new snapshot. The caller retains the returned object to see the updated status and result.

Requests and responses are serialized at the service boundary. Reconstructing the returned objects in the client gives authors the same inspection methods after discovery, execution, and later refreshes.

Executing nodes and limiting a run

The wf_core package implements the execution cycle shown in [@fig:node-execution-cycle]. It selects a ready execution position and handles the selected node according to its kind. An operation node invokes the callable chosen through the deployment. A control node instead performs its built-in behavior, such as choosing a condition route or starting iteration.

A cycle can revisit nodes indefinitely if its condition never selects an exit. To bound this work, the run has a node-execution limit, with a default of 10,000. Immediately before dispatching a node, the runtime checks that capacity remains and increments the run's counter. This check and increment is called admission. The counter therefore counts admitted executions, including control nodes, repeated visits, and executions that subsequently fail. It does not count only successful operations.

The policy is represented by RunLimits.max_steps, and the stored counter is steps_executed. Iteration and child workflows share this run-wide limit. Asynchronous execution reserves capacity before launching the selected work. When no capacity remains, the runtime fails the run before ever dispatching another node. The limit and counter persist with saved execution state, so resume continues with the remaining allowance.

This bounds the number of admitted node executions. The duration of a single operation and the cost of its external requests require separate controls. A handler that blocks indefinitely can still prevent progress after admission.

Preserving state across nested execution

Consider the two-document iteration in [@fig:foreach-graph]. In serial mode, document A appends its report to state before document B starts. B can read that updated state. In concurrent mode, A and B each work with a separate view of state. An item can read its own updates while its sibling's pending writes remain isolated. The foreach combines their updates after the required items finish, using the state fields' reducers.

Nesting introduces an additional case. Suppose each document is processed concurrently, but its sections are processed serially. Section 2 can read the work of section 1 in the same document. Those updates still belong to that document's separate view until the outer foreach combines the documents. Publishing every serial section's write directly into shared workflow state would expose unfinished document results to the other concurrent items.

The runtime tracks the active node, the workflow invocation that owns its data, and the updates held separately by concurrent items. A frame records one execution position, including its current node and owning foreach when it is an iteration item. A scope contains the input, working state, and context of one workflow invocation. A child workflow has its own scope. A lineage records state updates associated with an execution, allowing concurrent items to retain their separate views.

An output binding produces a patch, a set of state writes together with the information needed to apply their reducers. The runtime follows the item's enclosing iterations to determine where that patch belongs. Serial iterations pass their writes outward. At the nearest concurrent item boundary, the writes are buffered in that item's lineage. With no such boundary, they update the workflow scope's state. The runtime checks the complete ownership chain before applying a patch, so malformed parent records cannot cause a partial update.

Merging nested results also requires distinguishing an accumulated value from new writes. Suppose state already contains report A, and an inner group adds B and C. The resulting view is [A, B, C]. If an outer merge appends this whole view to the existing [A], it produces [A, A, B, C], which is undesirable.

The patch therefore retains the new writes, or contributions, separately from the accumulated value visible to readers. In this example the new contributions are B and C. A later merge applies those writes using the declared reducer, preserving A once. This bookkeeping supports nested concurrent iteration even when its intermediate results are merged again.

Giving expressions a consistent context

Suppose an outer foreach named documents processes documents, and an inner foreach named actions processes each document's action items. A node in the inner body may need both the document and the current action. A single unnamed current-item value would leave it unclear which one the node receives.

Execution context supplies runtime information to expressions and input bindings. Its foreach entries are keyed by the authored controller's identity. Inside the inner body, two paths distinguish the enclosing document from the current action:

context.foreach.documents.item  # enclosing document
context.foreach.actions.item    # current action

The runtime constructs these entries from the active frames. Repeated executions of the same node therefore resolve the paths to their own items.

A condition checking an item's fields and an input binding reading those fields receive the same context view. Validation checks these references against the corresponding schema. This avoids accepting a path that a condition would treat as absent while another reader can resolve it.

Context construction stops at the current workflow scope. If a child workflow needs the parent's document, its caller supplies that value through child input, as shown in [@fig:scope-boundaries]. On resume, persisted frame ownership identifies the active items. Missing owners, parent cycles, or conflicting aliases are reported as errors before those records are used to construct context.

Validation, persistence, and diagnostics

Validation first checks declarations that can be evaluated without running operations. For example, two output bindings on the same node might write foo to state."1" and bar to state."1"."2". The first targets an entire field and the second targets a location inside it. Applying both could replace the container that the nested write needs. The validator rejects overlapping destinations within that binding list, avoiding a dependency on their order. Here "1" and "2" are literal field names. The rule also applies to ordinary names such as state.report and state.report.title.

This check concerns one set of mappings. Successive nodes can intentionally update related state fields, and concurrent iteration combines writes through its separate reducer rules. Validation also checks graph structure and rejects illegal iteration returns. Server validation checks the available operations and service connections. At execution time, the runtime checks actual values and execution records as they become available.

Diagnostics carry a code, a location, a message, and, where available, a repair hint. For an overlapping destination, the location identifies the node's output-binding list. These fields let a caller locate the faulty mapping and decide how to repair it. The revised definition then passes through validation again.

The API lifecycle layer stores stopped runs and their checkpoints, saved representations of execution state. An interrupted checkpoint contains the position and working data needed to resume. Restoration validates those records before execution continues from the explicit interruption boundary. The limits of recovery for external operations are discussed in Limitations.

Separating artifact, deployment, and run storage also keeps inspection focused. Definition inspection explains what was saved; deployment inspection explains environment selection; run inspection and trace explain what happened during a particular run.

Server and provider responsibilities

The remaining package boundaries put these operations into a service. wf_api coordinates lifecycle operations, wf_artifacts supplies storage contracts and implementations, and wf_platform supplies shared platform contracts. wf_server composes these dependencies. wf_transport_rpc_http exposes the JSON-RPC interface, while wf_cli provides terminal operations.

Provider implementations retain their own lifecycle requirements. MCP support manages remote discovery and invocation through configured connections. Python support loads trusted configured callables; it is not a sandbox for arbitrary submitted code. OpenAPI support remains experimental and is not evidence that every described HTTP service can already be used without adaptation.

The case study follows these components through one public authoring session: discovery, revision, validation, persistence, execution, and inspection.

Case Study: Deterministic Report Workflow

Consider an author who receives weekly notes and needs two deliverables: a structured report for further processing and Markdown for a reader. The example workflow makes this small procedure reusable:

The three operations read notes, extract a report, and render Markdown.

The input is deliberately constrained. Notes contain named sections and action lines with owner, task, and due-date fields. Extraction parses that format using deterministic Python code. Fixed input and local operations allow the result to be checked independently of remote credentials, service quotas, or variation in generated text.

The bundle at examples/report_workflow/ supplies the operations, fixture notes, server configuration, and a saved raw-plan example. The walkthrough below expresses the same procedure through the current Python client. The example README retains a command-line route for operators who need that interface.

Starting with available operations

The operator supplies the source identities through the example configuration. This walkthrough discovers operations within those known sources; source administration is outside the session.

The example configuration registers three trusted Python operations under local.report for discovery and local.report_runtime for execution. Their Pydantic models describe the input and output contracts. The author consumes those operations from the service inventory; the client does not import their implementations to execute them locally.

The Python blocks form one asynchronous session. The retained test runs that session against the real service in process. It substitutes an in-process connection for the HTTP connection assignment; remote server startup is not tested. For HTTP use, the blocks assume a server using examples/report_workflow/wf.config.json, reachable at its configured address, and a fresh artifact name or unused version. The fixture read assumes the client is running from the repository root.

from pathlib import Path

from pydantic import BaseModel

from wf_authoring import input_from, input_path, output_to, state_path
from wf_client import App

app = App.from_http_jsonrpc("http://127.0.0.1:8771/rpc")
available = await app.capabilities(source_id="local.report")
for operation in available.items:
    print(operation.qualified_name)
read_notes = await app.capability("local.report.read_notes")
extract_report = await app.capability("local.report.extract_report")
render_report = await app.capability("local.report.render_markdown_report")
print(extract_report.output_schema)

Each lookup returns a capability object with its schemas and declared outcomes. The extraction schema exposes title, summary, action_items, risks, and followups. The title names the report and the summary records its overview. Action items describe work to do: owner identifies the responsible person, task describes the work, and due records its due-date text. Risks list potential problems, and followups record matters needing later attention. The author can use the schema directly or declare corresponding local models. This session uses local models without importing provider implementation code.

The listing contains local.report.read_notes, local.report.extract_report, and local.report.render_markdown_report. Their inspected contracts describe how each can be connected. The author selects the operations and constructs the graph from those contracts.

Before connecting operations, the author checks their input and output contracts for compatible fields.

Describing the workflow's data

The workflow has one public input, intermediate state, and two public outputs. They are declared separately so that intermediate notes do not accidentally become part of the result contract.

class ActionItem(BaseModel):
    owner: str
    task: str
    due: str


class ReportOutput(BaseModel):
    title: str
    summary: str
    action_items: list[ActionItem]
    risks: list[str]
    followups: list[str]

These author-defined models represent the discovered report fields. The workflow then declares its own input, working state, and public output:

class NotesInput(BaseModel):
    text: str


class ReportState(BaseModel):
    notes: str = ""
    report: ReportOutput | None = None
    markdown: str = ""


class ReportResult(BaseModel):
    report: ReportOutput
    markdown: str


graph = app.new_workflow(
    "report_python_showcase",
    input_schema=NotesInput,
    state_schema=ReportState,
    output_schema=ReportResult,
)

The models export schemas that are stored with the workflow contract. This lets the service validate its data after the author's Python session ends. The report starts as absent in intermediate state. The public result requires a report because the successful pipeline produces one before completion.

Connecting data and decisions

The author now creates three node uses. Each use selects an operation and declares its data bindings. In the first mapping, input_path("text") selects the workflow's public input field, and the second "text" names the reading operation's argument. They happen to share a name. The extraction mapping instead reads the state field notes into an argument named text.

In an output binding, "." selects the complete returned object. Extraction stores that whole report in state.report, while reading and rendering store only selected output fields:

read = graph.use(
    read_notes,
    id="read",
    input=[input_from(input_path("text"), "text")],
    output=[output_to("text", state_path("notes"))],
)
extract = graph.use(
    extract_report,
    id="extract",
    input=[input_from(state_path("notes"), "text")],
    output=[output_to(".", state_path("report"))],
)
render = graph.use(
    render_report,
    id="render",
    input=[input_from(state_path("report"), "report")],
    output=[output_to("markdown", state_path("markdown"))],
)

The author connects each operation's ok outcome to the next node, ending at a node that completes the workflow with outcome ok. Final output bindings then select the report and Markdown from state:

end = graph.end("ok", id="finished")
graph.set_entry_point(read)
graph.connect(read, "ok", extract)
graph.connect(extract, "ok", render)
graph.connect(render, "ok", end)
graph.set_output([
    input_from(state_path("report"), "report"),
    input_from(state_path("markdown"), "markdown"),
])

Using "." selects all fields of that node's output. An empty output-binding list would store none of them in workflow state. The connect calls determine execution order independently of these data selections.

The author declares data mappings and execution routes separately. Changing one leaves the other unchanged. This requires additional declarations even for a linear three-step procedure; typed helpers construct the serialized representation from those declarations.

Diagnosing and repairing a binding

An editable graph can temporarily be invalid. Suppose a final output binding reads missing_report, although the declared state contains report:

# Deliberately refer to an undeclared state field.
from textwrap import fill

graph.set_output([
    input_from(state_path("missing_report"), "report"),
    input_from(state_path("markdown"), "markdown"),
])
broken = await graph.validate()
assert not broken.ok
assert broken.remote_status == "not_run"  # Local rejection skips the server check.
for issue in broken.local.errors:
    print(issue.code, issue.path)
    print(fill(issue.message, width=72))

The example prints the diagnostic code, its location, and the message wrapped to fit the page:

invalid_source_path output[0].path
source path must start with input., state., or context. and reference a
declared root field when applicable

The location identifies the first workflow-output mapping. Comparing its source with the declared state reveals the misspelled reference. Local validation rejects the graph before a server validation request is made. The author repairs that reference and validates again:

# Repair the field reference, leaving the nodes and edges unchanged.
graph.set_output([
    input_from(state_path("report"), "report"),
    input_from(state_path("markdown"), "markdown"),
])
(await graph.validate()).raise_for_errors()

The repair changes the workflow's output mapping. The renderer and its outgoing edge remain unchanged. This illustrates why data bindings and control routes need separate feedback. The next section saves only the repaired definition.

Saving a version and choosing its environment

Before saving, the author can request validation and inspect its diagnostics. The example stops on errors:

validation = await graph.validate()
validation.raise_for_errors()
artifact = await graph.save(version=1)

deployment = await artifact.deploy(
    "report_python_showcase.local",
    bindings={"local.report": "local.report_runtime"},
)
readiness = await deployment.validate()
if not readiness.runnable:
    raise RuntimeError(readiness.diagnostics)

The artifact is the saved version of the authored procedure. The deployment maps the saved local.report requirement to local.report_runtime. The fixture registers compatible operations under both names so this choice changes the execution source without changing the graph or requiring remote credentials. Both source identities refer to the example's local operations.

[@fig:python-lifecycle] summarizes the public operations; it omits internal validation and re-inspection calls made by individual client methods.

sequenceDiagram
  actor Author
  participant Client as Python client
  participant API as Workflow service
  participant Provider as Bound operation
  Author->>Client: Build and revise graph
  Client->>Client: Check structure locally
  Client->>API: Validate and save definition
  API-->>Client: Saved artifact version
  Client->>API: Bind deployment to version
  API-->>Client: Deployment and readiness
  Client->>API: Run with input
  API->>Provider: Invoke bound operation
  Provider-->>API: Output and outcome
  API-->>Client: Run snapshot
  Client->>API: Inspect run and bounded trace
  API-->>Client: Stored execution evidence
  Client-->>Author: Result or diagnostic

An edit to the workflow would be saved as another version, leaving this deployment's artifact unchanged. Selecting a different source environment changes the deployment's bindings. A readiness check can reject a missing or incompatible binding before a run is attempted.

Running and inspecting the result

The client reads the notes and sends their contents. The server therefore does not need access to the client's file path.

notes = Path("examples/report_workflow/input.md").read_text(encoding="utf-8")
# Permit at most 100 admitted node executions across this run.
run = await deployment.run({"text": notes}, max_steps=100)
if run.status != "completed":
    raise RuntimeError((run.status, run.diagnostics))

result = ReportResult.model_validate(run.output)
assert result.report.title == "Weekly Project Update"
assert len(result.report.action_items) == 3
assert result.markdown.startswith("# Weekly Project Update")

run = await run.refresh()
trace = await run.trace(start=0, limit=10)

print("Status:", run.status)
print("Title:", result.report.title)
print("Action items:", len(result.report.action_items))
print(result.markdown.splitlines()[0])

The session prints a compact result summary and the first line of the rendered Markdown:

Status: completed
Title: Weekly Project Update
Action items: 3
# Weekly Project Update

The run exposes a status, output, and diagnostics independently of the editable graph. The output crosses the API as data; the explicit model_validate call reconstructs the example's Pydantic result model. Refreshing obtains the latest stored snapshot, while the bounded trace provides step-level evidence when output alone is insufficient.

For this fixed fixture, the result includes three action items, the recorded risks and followups, and a Markdown report headed “Weekly Project Update.” Checking these fields establishes that the example's data reached the intended outputs. The extraction contract requires the sectioned notes format described at the start of this chapter.

Registering a scheduled run

The same deployment can be invoked later by the server's scheduler. With scheduling enabled on the local/static server, the client can register a one-time start and inspect its stored configuration and occurrence history:

from datetime import UTC, datetime, timedelta

schedule = await app.create_schedule(
    schedule_id="report-once",
    deployment_id=deployment.deployment_id,
    trigger={
        "kind": "oneshot",
        "at": (datetime.now(UTC) + timedelta(hours=1)).isoformat(),
    },
    input_bindings=[{
        "target": "text",
        "expression": {"kind": "literal", "value": notes},
    }],
    max_steps=100,
)
schedule = await app.schedule(schedule.schedule_id)
history = await app.schedule_occurrences(schedule.schedule_id, limit=10)

The input binding stores the current contents of notes. The scheduled run receives that text even if the original file changes. A recurring workflow that needs fresh notes would need an operation that retrieves them when it runs. Occurrence history records what happened to scheduled starts, including admission and completion. Immediately after registration, it can be empty.

The session check verifies registration and inspection without waiting for the scheduled time. Scheduler execution is exercised separately in test_scheduled_deployment_example.py.

What this case demonstrates

The executable check in test_thesis_python_walkthrough.py reads and runs this chapter's Python blocks, including the rejected binding and its repair. It checks the stored report, the returned snapshot, and the two displayed output excerpts against the session's captured output. The existing tests in test_report_workflow_example.py check the source's input rules, rendering and extraction, capability discovery and invocation, and the artifact/deployment/run lifecycle using the raw-plan fixture. Those tests are evidence for the report operations and lifecycle, complementing the Python session check.

The Python session shows the current authoring steps: inspect operations, declare contracts, connect data and outcomes, save, select bindings, and inspect an execution. The CLI and draft surface offer alternative interfaces to related lifecycle operations.

A direct Python script would be shorter for these three local functions. The additional structure becomes relevant when the definition must be saved, bound to an environment, validated independently, and inspected through a shared service. This example demonstrates the integration of those operations.

The case exercises a linear pipeline. Conditional branches, foreach bodies, child workflows, and interrupts are covered by separate runtime tests listed in the evaluation's evidence index. Independent authoring and diagnosis tasks are needed to evaluate the interaction beyond this scripted session.

Evaluation

Evaluation distinguishes three questions: whether the runtime follows its contract, whether the public lifecycle composes correctly, and whether an author can use that lifecycle effectively. The reported in-process walkthrough exercises the public lifecycle. Targeted tests for runtime contracts are mapped in the Evidence Index. The authoring assessment identifies the operations available through the interface. Usability remains a separate evaluation question.

Requirements and evidence

[@tbl:requirements-evidence] relates the authoring requirements R1–R5 and execution requirements X1–X5 to the available evidence. E1–E5 refer to the five groups in the Evidence Index appendix: E1 covers lifecycle operations, E2 Python authoring, E3 validation, E4 runtime execution, and E5 source providers. These labels locate implementation and test files. The table distinguishes the walkthrough's observations from listed tests and the usability measurements still needed.

Requirement	Evidence	Assessment
R1 Discovery	Walkthrough; E2	Exercised; usability unmeasured
R2 Data movement	Worked graph	Explained; comprehension unmeasured
R3 Revision feedback	Binding repair; E3	Exercised; usability unmeasured
R4 Editing vs running	Lifecycle; E1–E2	One saved version exercised
R5 Status interpretation	Inspection; E1–E2	Exposed; usability unmeasured
X1 Definition/run identity	Lifecycle; E1	Lifecycle tests listed
X2 Known constraints	Validation; E3	Constraint tests listed
X3 Routing and state	Runtime; E4	Runtime tests listed
X4 Environment choices	Sources; E5	Provider tests listed
X5 Bounds/inspection	Node limits/resume; E1, E4	Boundary tests listed

: Requirements and available evidence. {#tbl:requirements-evidence}

The R4 observation covers saving and running version 1. The session does not edit a later version or check its effect on earlier runs. Understanding the version distinction remains part of the authoring evaluation.

X5 covers the run-wide node-execution limit, execution inspection, and interruption resume. Node-execution limit tests check that the counter persists and that exhaustion prevents further dispatch. Lifecycle tests exercise stored inspection and resume. The report session exercises inspection with a limit of 100 node executions. It completes within that limit and contains no interruption. The evidence index locates the separate tests for exhaustion and resume.

Walkthrough method and observations

The retained walkthrough test uses the example server configuration and a fresh pytest temporary store. It extracts the case study's Python blocks in document order and substitutes an in-process client connection for the HTTP connection assignment. All later calls use the real API, provider, and stores. This setup exercises discovery, graph construction, validation, saving, deployment, execution, refresh, and trace inspection, while excluding network startup and transport behavior from the observation.

[@tbl:prototype-conformance] records the requirement-linked checks performed by that session. The fixture expectations are fixed independently of the workflow's result, and stored output is inspected again through the API.

Check	Expected observation	Requirement
Invalid output mapping	Local rejection at output[0].path	R3, X2
Repaired graph	Validation permits saving and running	R3, X2
Persisted report	Expected title and three action items	X1, X3
Persisted rendering	Expected Markdown heading	X3
Run and trace	Completed snapshot; recorded steps	R5, X5 inspection

: Reproducible report-session checks. {#tbl:prototype-conformance}

The checked session completed with the expected title, three action items, and Markdown heading in the saved output. The invalid binding was rejected locally; restoring the mapping allowed validation and execution to continue. These observations establish the displayed procedure's behavior for this fixture, not an author's ability to construct it unaided.

The session check and the existing report-example tests can be run with:

$suites = @(
    "tests/examples/test_thesis_python_walkthrough.py",
    "tests/examples/test_report_workflow_example.py"
)
uv run pytest @suites -q -n 0

The first suite executes the displayed case-study session with the stated transport substitution. The second checks the operation fixtures and raw-plan lifecycle independently. Document rendering and generated PDF assets are not part of this command. The test and manuscript must be taken from the same repository revision because the test reads the manuscript directly.

Separating design comparison from evaluation

The earlier comparison of n8n, Zapier, and LangGraph explains different authoring and execution choices. The same task has not been measured across those systems under matched conditions. This report therefore cannot rank their usability, reliability, or performance against the prototype.

Execution tests ask whether contracts, routing, state updates, and persistence behave as specified. Interaction evaluation asks whether an author can discover operations, express a procedure, understand errors, and recover without inspecting implementation code. Passing one kind of test does not answer the other.

The report walkthrough exposes costs such as explicit bindings and deployment selection, but does not measure whether those costs are acceptable to new users. Similarly, structured diagnostics and inspection objects may help an agent avoid trial and error, but reduced retries, token use, and repair time remain hypotheses rather than measured outcomes.

Falsifiability criteria

The implementation would fail its stated contracts if, for example:

• a saved run could not identify the definition and bindings it used;
• an invalid foreach boundary were accepted and executed as another region;
• nested state writes were lost or counted twice;
• resume reset the node-execution counter or resumed the wrong item;
• condition evaluation used a different context model from validation;
• ordinary source invocation required provider-specific graph routing.

These cases support focused regression tests. Broader architectural claims, such as accommodating future source families without changing the runtime, remain design expectations to assess as those integrations are built.

Limitations

The prototype demonstrates a workflow lifecycle under controlled conditions. Its main limitations concern how much authors must understand, which execution guarantees are provided, and how far the available evidence can be generalized.

Authoring and diagnosis still require technical knowledge

The Python client reduces manual serialization and provides editable graphs and inspectable objects. It does not remove the need to understand schemas, state bindings, outcomes, and deployment selection. The report example makes this cost visible: a short procedure requires more declarations than direct function calls.

Diagnostics identify many invalid structures and bindings, but an accurate message is not necessarily an understandable repair instruction. Authors still need to distinguish a graph error from an environment problem or a failed external operation. The current evidence does not establish that new users can make these distinctions without assistance.

Inspection also requires judgment. A trace shows recorded execution, not whether a report is factually correct or a remote side effect was desirable.

Execution guarantees have defined boundaries

Foreach iteration, nested workflow scopes, structured context, and run-wide node-execution limits are implemented foundations. They do not yet provide general fork/gather control for arbitrary branches. In particular, concurrent iteration should not be presented as a solution to correlating branches that split, loop, and later meet at different gather points.

Persisted interrupted runs can resume at explicit boundaries. This is not arbitrary mid-handler crash recovery, replay of every external call, or an exactly-once side-effect guarantee. A run's step limit bounds admitted graph steps; it does not bound a handler's execution time or the cost of its external requests.

Schema validation checks declared structure, not business truth. A returned report may satisfy its schema while containing incorrect information. Similarly, a fixed graph specifies routing but does not make remote responses or concurrent completion order reproducible.

Deployment and trust assumptions

The controlled examples assume trusted operators and trusted Python sources. Python operations execute in the server process without a sandbox. The thesis does not establish multi-tenant isolation, role-based authorization, or production-grade credential management. An explicit workflow interrupt can request a response, but is not by itself an authenticated approval or access-control mechanism.

Source bindings make environment choices inspectable rather than making workflows universally portable. A destination environment still needs compatible operations, credentials, and dependencies. Python sources are loaded at startup; changing their code requires a server restart. The shared provider interface does not yet unify every provider's administration, authentication, and live health behavior.

Filesystem-backed stores support the demonstrated persistence paths. Their use does not establish production performance, cross-process contention behavior at scale, or disaster recovery. A future database implementation would still need to preserve the lifecycle's transaction and ownership contracts; changing the storage engine alone would not prove those properties.

Scheduled execution uses the same deployment and run records as direct invocation. Its ownership model assumes one scheduler over the participating file stores and is supported only by the local/static server configuration. This bounds the deployment conditions under which the scheduling mechanism can be used; it is not a distributed execution service.

The provider interface exposes callable operations. It does not reproduce a provider's interactive widgets or its complete user interface.

Limits of the evidence

The deterministic report fixture demonstrates lifecycle integration, not broad document understanding or graph expressiveness. Targeted tests cover additional execution mechanisms. The evidence index identifies those tests; this report records execution results for the report-session suites.

The in-process setup also limits the walkthrough to service composition; it does not test the displayed HTTP connection. Without independent authoring tasks or matched cross-system measurements, its results cannot establish ease of use, repair efficiency, or comparative performance. Those questions require the interaction evaluation described in Future Work.

Future Work

The remaining questions concern richer execution semantics, the effectiveness of authoring and diagnosis, and operation beyond the controlled environment.

Establish general fork and gather semantics

General fork/gather requires a rule for identifying which concurrent work belongs to the same invocation. Existing frames, scopes, iteration activations, and state lineages provide foundations, but their relationships must remain coherent through nested execution and resume.

A fork creates concurrent execution branches; a gather must determine which arriving branches belong together before combining their state. Loops, partial gathers, and repeated visits make this more than waiting for a fixed number of arrivals. The design must also preserve contribution identity so that a write already included in one merge is not applied again in a later merge.

This work remains planned, with reference-model verification preceding production implementation. Pressure cases should become executable tests for correlation, merge behavior, and recovery. The authoring contract also needs to make clear which graphs are rejected before execution and which decisions remain the author's responsibility.

Evaluate the authoring and recovery experience

A focused usability study should ask participants to discover an operation, build a small workflow, change its contract, diagnose a broken binding, and inspect a failed or interrupted run. Useful measures include task completion, time to a correct repair, unnecessary retries, and reliance on source-code inspection.

Execution and interaction should be evaluated together without conflating them. For example, a validation rule may correctly reject a graph while its diagnostic fails to explain the ownership boundary that was crossed. Conversely, a convenient editing operation must not hide a change to the workflow's execution meaning.

The Python client and CLI should receive evidence appropriate to their own interaction styles. For agent trials, fix the interface, allowed operations, task fixtures, and success criteria before collecting results. Check an agent's report against saved artifacts, deployment identity, run output, and recorded interactions. Human evaluation can test whether the lifecycle vocabulary and data-binding model are understandable without implementation knowledge.

Durable waiting within a run

Scheduling starts a new run of a saved deployment. Waiting until a time or event during an existing run would instead require a durable suspension point and rules for resuming it. Future work should distinguish these two forms of timed execution rather than treat a wait operation as another schedule. Distributed execution would additionally require an ownership model beyond the current single-scheduler arrangement.

An assistant-backed authoring application

A companion local-first assistant application has an execution backend for persistent Python shells, streamed code output and images, execution approvals, and saved conversations. Its chat interface is under development. The shells allow an agent to retain Python objects across interactions, which provides an environment in which it could use the workflow client. Code executes on the local machine without a sandbox. Saved history survives backend restart, but previous shells are not restored and unfinished work is not replayed.

Integrating this application with workflow authoring and administration remains to be evaluated. An author needs to inspect and correct a proposed procedure before running it, then follow its status and respond to interruptions. Dedicated views of the client's artifact, deployment, and run objects could support that interaction. The present case study evaluates the workflow client directly and includes no agent-driven authoring session.

Preserving contracts across operational changes

The source catalog already represents resources, and a built-in workflow operation can read resource text with a size bound. Further authoring work could make these resources easier to select and inspect alongside operations, including clear treatment of content types and truncated results.

Additional providers and storage backends would test whether the architectural boundaries hold beyond the demonstrated implementations. The question is whether an integration can preserve source compatibility, run identity, and recovery behavior without changing the graph's execution rules. Such work needs failure tests and deployment evidence as well as a working adapter.

Richer debugging should clarify what can safely be resumed or repeated, especially around external side effects. Showing more trace information is different from promising that an earlier action can be undone.

Conclusion

This report examined how a useful procedure can become a reusable workflow that an author can define and an operator can inspect. The implemented system separates the saved definition, its deployment bindings, and each execution into artifacts, deployments, and runs. Those distinctions give workflow use a record beyond the lifetime of an editing session or a single script invocation.

The graph model separates data movement from control movement. Contracts and bindings describe what a step receives and writes. Outcomes select transitions, while runtime constructs govern iteration, child scopes, and interruption. The Python client exposes this model through authoring and inspection objects, while the API and provider boundaries connect it to configured operations.

The report case demonstrates that these representations compose into a save–deploy–run–inspect lifecycle for the fixed fixture. The repository also contains targeted tests covering execution requirements X1–X5; the evidence index locates them without reporting a combined execution result. For the authoring objectives R1–R5, the work identifies and exercises supporting interfaces, but their effectiveness for independent human or agent authors remains an open evaluation question.

Explicit contracts expose data mappings, saved versions, and run records, while requiring authors to learn more concepts than a sequence of function calls. The implemented contribution is the integration of these contracts into a programmable lifecycle, demonstrated by saving, configuring, executing, and inspecting the report procedure through the public client.

References

::: {#refs} :::

\appendix

Evidence Index

This appendix maps the evaluation's evidence identifiers to implementation and tests. Paths identify inspectable evidence; they are not a claim that all listed suites passed in one newly recorded full-system run.

Core workflow lifecycle

E1: artifacts, deployments, scheduled execution, stopped runs, and explicit resume boundaries.

• src/wf_artifacts/models.py
• src/wf_artifacts/runs/
• src/wf_api/run_lifecycle.py
• tests/wf_api/test_artifact_api.py
• tests/wf_api/test_run_api.py
• tests/examples/test_scheduled_deployment_example.py

Python authoring and inspection

E2: reconstructed client objects, editable workflows, and the report fixture.

• src/wf_client/
• tests/wf_client/test_authoring.py
• tests/wf_client/test_deployments.py
• tests/wf_client/test_runs.py
• examples/report_workflow/
• tests/examples/test_report_workflow_example.py
• tests/examples/test_thesis_python_walkthrough.py

The example's README retains the command-line route for operators who need it. That alternative interface is not an additional evaluated case in the current thesis.

Validation and diagnostics

E3: structural validation, source compatibility, and repair information.

• src/wf_core/validation/
• src/wf_artifacts/validation.py
• tests/artifacts/test_validation.py
• tests/core/test_structured_context_validation.py
• tests/core/test_foreach_control_regions.py

Execution ownership and node limits

E4: nesting, structured context, concurrent iteration, and persisted node-execution limits.

• src/wf_core/runtime/
• tests/core/test_foreach_back_edges.py
• tests/core/test_concurrent_foreach_interrupts.py
• tests/core/test_structured_runtime_context.py
• tests/core/test_run_step_budget.py
• tests/core/test_run_step_budget_codec.py
• tests/core/test_run_step_budget_async.py

Source provider boundary

E5: source contracts and provider-specific execution behind server composition.

• src/wf_platform/sources.py
• src/wf_server/config.py
• src/wf_sources_python/
• src/wf_sources_mcp/
• src/wf_api/source_helpers.py
• tests/wf_sources_python/test_loader.py
• tests/wf_sources_mcp/test_runtime.py
• tests/wf_transport_rpc_http/test_mcp_backed_server_rpc.py

The existing providers demonstrate this separation for their implemented operations. They do not establish equal lifecycle features across providers or prove compatibility with every future source family.
